最近在用赤兔板子调试lcd,st7789,里面有这么一段代码:
void LCD_GPIOInit(void) { GPIO_InitTypeDef GPIO_InitStructure; RCC_APB2PeriphClockCmd( RCC_APB2Periph_GPIOB| RCC_APB2Periph_TIM1, ENABLE ); GPIO_InitStructure.GPIO_Pin = GPIO_Pin_14; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP; GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; GPIO_Init( GPIOB, &GPIO_InitStructure ); rt_kprintf("LCD manufacturer ID41\n\r "); TIM_OCInitTypeDef TIM_OCInitStructure; TIM_TimeBaseInitTypeDef TIM_TimeBaseInitStructure; TIM_TimeBaseInitStructure.TIM_Period = 100; TIM_TimeBaseInitStructure.TIM_Prescaler = 288-1; TIM_TimeBaseInitStructure.TIM_ClockDivision = TIM_CKD_DIV1; TIM_TimeBaseInitStructure.TIM_CounterMode = TIM_CounterMode_Up; TIM_TimeBaseInit( TIM1, &TIM_TimeBaseInitStructure ); rt_kprintf("LCD manufacturer ID42\n\r "); #if (PWM_MODE == PWM_MODE1) TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1; #elif (PWM_MODE == PWM_MODE2) TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM2; #endif TIM_OCInitStructure.TIM_OutputNState = TIM_OutputNState_Enable; TIM_OCInitStructure.TIM_Pulse = 50; TIM_OCInitStructure.TIM_OCNPolarity = TIM_OCNPolarity_High; TIM_OC2Init( TIM1, &TIM_OCInitStructure ); rt_kprintf("LCD manufacturer ID43\n\r "); TIM_CtrlPWMOutputs( TIM1, ENABLE ); TIM_OC2PreloadConfig( TIM1, TIM_OCPreload_Disable ); TIM_ARRPreloadConfig( TIM1, ENABLE ); rt_kprintf("LCD manufacturer ID44\n\r "); TIM_Cmd( TIM1, ENABLE ); // printf("LCD manufacturer ID45\n\r "); }
上面代码是使用gpiob的pin14作为亮度调节输出。当不用rtthread时,使用debug.c里的printf打印,输出数据一切正常;当我用rtthread后,使用rt_kprint打印,就输出乱码,在
TIM_Cmd( TIM1, ENABLE );
之前的所有打印都正常,在其之后的所有打印都输出乱码
\ | /
- RT - Thread Operating System
/ | \ 4.0.4 build May 24 2023
2006 - 2021 Copyright by rt-thread team
MCU: CH32V307
SysClk: 144000000Hz
www.wch.cn-guolin
LCD manufacturer ID1
LCD manufacturer ID2
LCD manufacturer ID41
LCD manufacturer ID42
LCD manufacturer ID43
LCD manufacturer ID44
L??[[??I3????Y?s3cue??礃??mn?l7?洊?x5?慆6窙??? x5?萵??#膻05胊?n

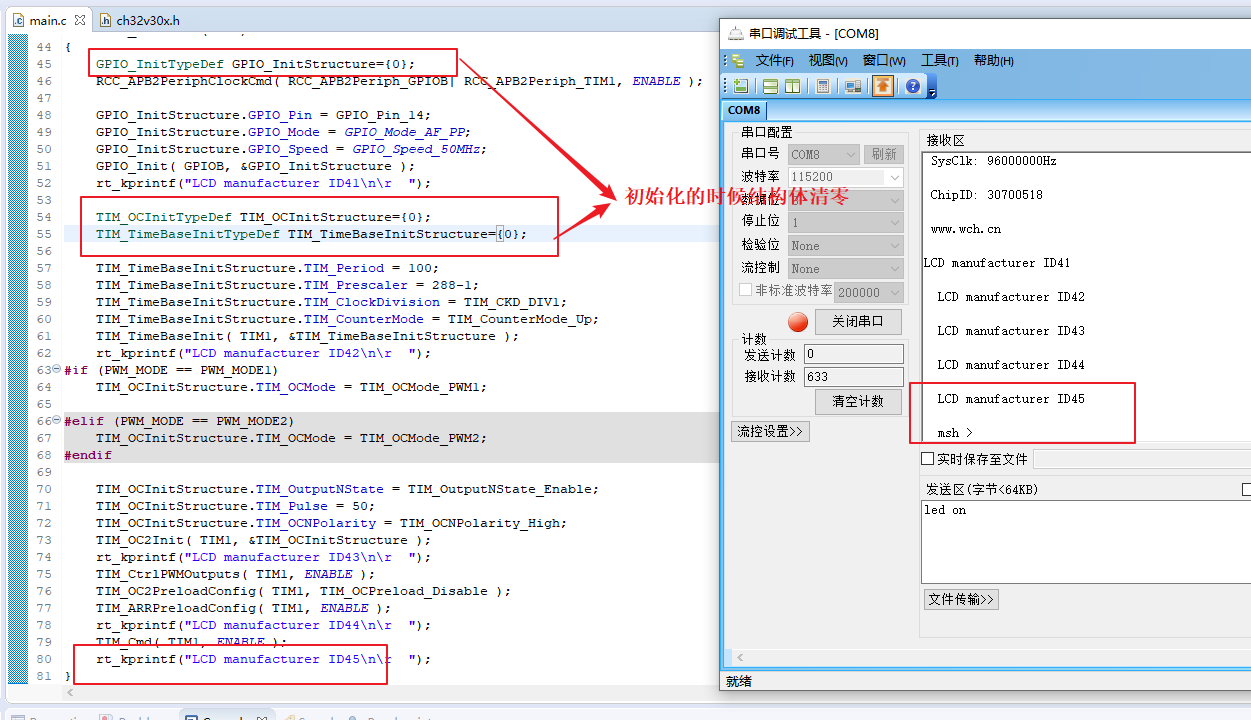

[11:47:15.654]收←◆欬??!!
